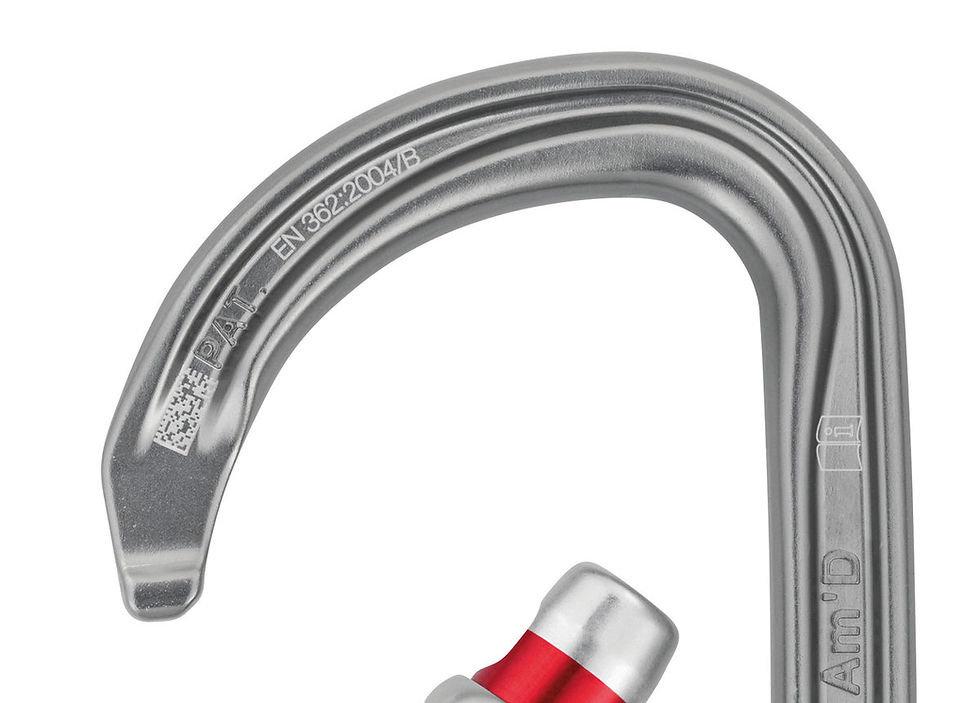

Am’D
Lightweight asymmetrical carabiner
The Am’D lightweight asymmetrical carabiner is made of aluminum. It has a D shape particularly suited for connection to diverse equipment such as descenders or positioning lanyards. Its fluid interior design and Keylock system facilitate handling. The Am’D carabiner is available in three locking systems: automatic TRIACT-LOCK or BALL-LOCK system, or the manual SCREW-LOCK system. Am'D may be used with a CAPTIV positioning bar to favor loading of the carabiner along the major axis, to limit the risk of it flipping and to keep it integrated with the device.
Detailed Description
D shape is particularly suited for connection to equipment such as descenders or positioning lanyards
Aluminum carabiner is light, reducing the weight of equipment the worker at height needs to carry
May be used with a CAPTIV positioning bar to favor loading of the carabiner along the major axis, to limit the risk of it flipping and to keep it integrated with the device
Easier handling: - fluid interior design limits the risk of having a catch point and facilitates rotation of the carabiner - Keylock system to avoid any involuntary snagging of the carabiner
H-shaped cross-section: - ensures an improved strength-to-weight ratio - protects markings from abrasion
Available in three different locking systems: - TRIACT-LOCK: automatic locking with triple-action gate opening - BALL-LOCK: automatic locking with triple-action gate opening, with lock indicator - SCREW-LOCK: the manual screw-lock with red band provides a visual warning when the carabiner is unlocked
Also available in black (TRIACT-LOCK and SCREW-LOCK versions) and gold (TRIACT-LOCK and BALL-LOCK versions)
Specifications
Material(s): aluminum
Certification(s): CE EN 362, EAC, NFPA 2500 Technical Use, UKCA
SKUs
SKUs
M34A TL
M34A BL
M34A SL
M34A TLN
M34A SLN
M34A TLY
Weight
75 g
75 g
70 g
75 g
70 g
75 g
Locking system
TRIACT-LOCK
BALL-LOCK
SCREW-LOCK
TRIACT-LOCK
SCREW-LOCK
TRIACT-LOCK
Color(s)
Gray
Gray
Gray
Black
Black
Gold
Major axis strength
27 kN
27 kN
27 kN
27 kN
27 kN
27 kN
Minor axis strength
8 kN
8 kN
8 kN
8 kN
8 kN
8 kN
Open gate strength
7 kN
7 kN
7 kN
7 kN
7 kN
7 kN
Gate opening
24 mm
25 mm
25 mm
24 mm
25 mm
24 mm
Guarantee
3 years
3 years
3 years
3 years
3 years
3 years
Inner Pack Count
1
1
1
1
1
1
SKUs
M34A BLY
Weight
75 g
Locking system
BALL-LOCK
Color(s)
Gold
Major axis strength
27 kN
Minor axis strength
8 kN
Open gate strength
7 kN
Gate opening
25 mm
Guarantee
3 years
Inner Pack Count
1
